This tutorial was written with CorelX19 and translated with CorelX17, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
french translation here
your versions here


For this tutorial, you will need:
Tubes at your choice; a main tube, a floral misted and a deco tube.
The rest of the material here
For the tubes used and not supplied thanks Luz Cristina and Yedralina.
For the masks thanks Narah.
(The links of the tubemakers here).




Plugins:
consult, if necessary, my filter section here
Filters Unlimited 2.0 qui
VM Instant Art - Tripolis here
AP 01 [Innovations] - Lines SilverLining here
Mura's Seamless - Emboss at Alpha here
AAA Filters - Custom here
Filters VM Instant Art and Mura's Seamless can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited







You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here



Open the masks in PSP and minimize them with the rest of the material.

1. Set your foreground color to #765b0a,
and your background color to #f5e199.



Set your foreground color to a Foreground/Background Gradient, style Linear.



2. Open CanalAlpha
Window>Duplicate or, on the keyboard, shift+D to make a copy.



Close the original.
The copy, that will be the basis of your work, is not empty,
but contains the selections saved to alpha channel.

Flood Fill the transparent image with your Gradient.

3. Layers>New Raster Layer.
Selections>Select All.
Open the main tube and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

4. Effects>Image Effects>Seamless Tiling, default settings.



5. Adjust>Blur>Gaussian Blur - radius 15.



Layers>Merge>Merge Down.

6. Layers>Duplicate.
Image>Resize, to 80%, resize all layers not checked.

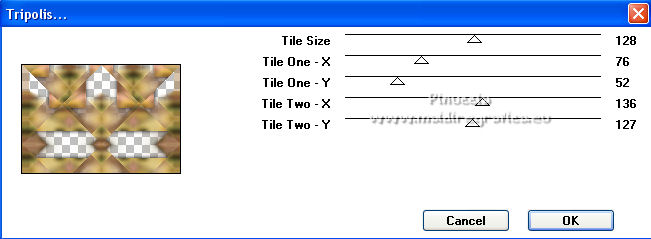

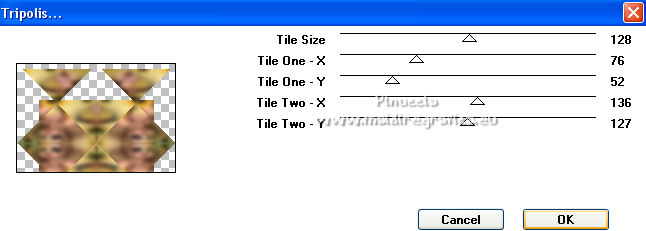

7. Effects>Plugins>VM Instant Art - Tripolis.

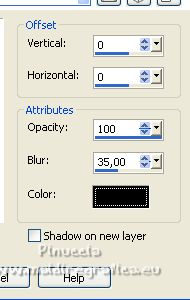

8. Effects>3D Effects>Drop Shadow, color black.



9. Effects>Image Effects>Seamless Tiling, default settings.



10. Again Effects>Image Effects>Seamless Tiling, Horizontal checked.



11. Effects>Plugins>VM Instant Art - Tripolis, same settings.

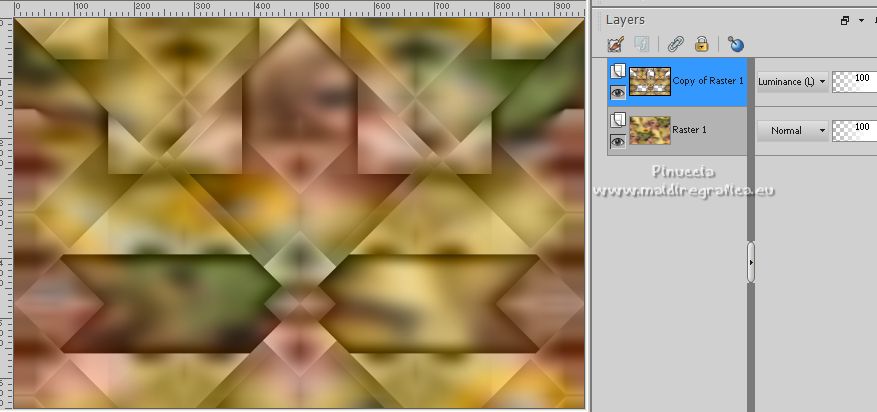

12. Change the Blend Mode of this layer to Luminance (legacy).



13. Effects>3D Effects>Drop Shadow, same settings.

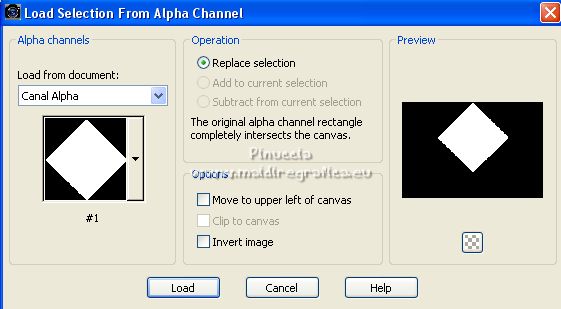

14. Selections>Load/Save Selection>Load Selection from Alpha Channel.
The selection #1 is immediately available. You just have to click Load.



15.Edit>Copy Special>Copy Merged.

16. Layers>New Raster Layer.
Edit>Paste into Selection.

17. Selections>Modify>Contract - 22 pixels.

Adjust>Blur>Gaussian Blur - radius 35.



Effects>Edge Effects>Enhance.

18. Flood Fill the selection with your Gradient.

Selections>Modify>Contract - 3 pixels.

19. Activate your bottom layer.
Selections>Promote Selection to Layer.
Layers>Arrange>Bring to Top.
Effects>Edge Effects>Enhance.

20. Layers>New Raster Layer.
Open the floral misted and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

21. Layers>Merge>Merge Down - 2 times.

22. Effects>3D Effects>Drop Shadow, same settings.

23. Layers>Duplicate.
Image>Resize, to 20%, resize all layers not checked.
Image>Mirror.

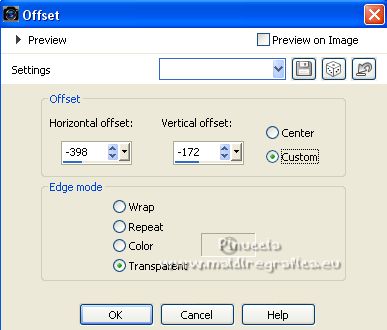

24. Effects>Image>Effects>Offset.



25. Activate again the layer below of the original rhombus, Raster 2.

Layers>Duplicate.
Image>Resize, to 30%, resize all layers not checked.
Image>Mirror.

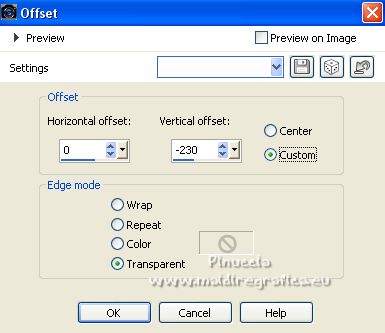

26. Effects>Image Effects>Offset.



27. Effects>Reflection Effects>Rotating Mirror.



Adjust>Sharpness>Sharpen.

28. Activate your top layer, Copy of Raster 2.
Layers>Merge>Merge Down- 2 times.

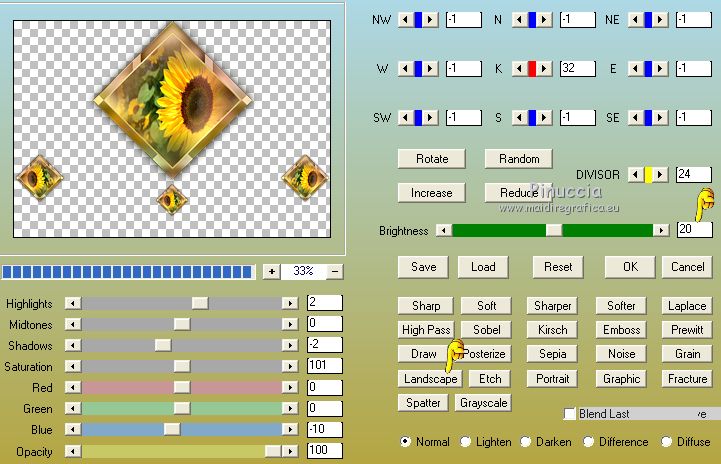

29. Effects>Plugins>AAA Filters - Custom - click on Landscape - Brightness 20.



30. Set your foreground color to white.
Layers>New Raster Layer.
Flood Fill the layer with color white.

31. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask NarahsMasks_1733.



Layers>Merge>Merge Group.

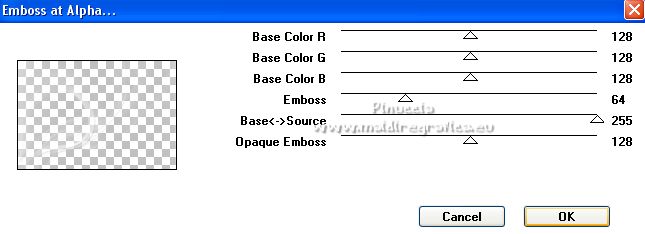

32. Effects>Plugins>Mura's Seamless - Emboss at Alpha, default settings.



33. Image>Mirror.
Image>Flip.

Change the Blend Mode of this layer to Overlay.
Layers>Arrange>Move Down.



34. Layers>New Raster Layer.
Flood Fill the layer with color white.

35. Layers>New Mask layer>From image
Open the menu under the source window
and select the mask NarahsMasks_1648.



Layers>Duplicate.
Layers>Merge Merge Group.

36. Change the Blend Mode of this layer to Luminance (héritée).



37. Activate your bottom layer, Raster 1.

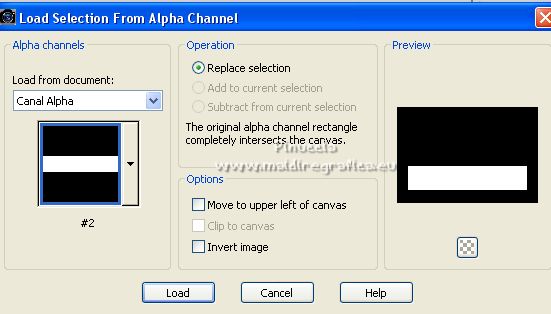

Selections>Load/Save Selection>Load Selection from Alpha Channel.
Open the selections menu and load the selection #2.



Selections>Promote Selection to Layer.

38. Adjust>Blur>Gaussian Blur, radius 10.



39. Image>Mirror.
Keep selected.

40. Layers>New Raster Layer.
Open the tube Deco00294©Yedralina and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

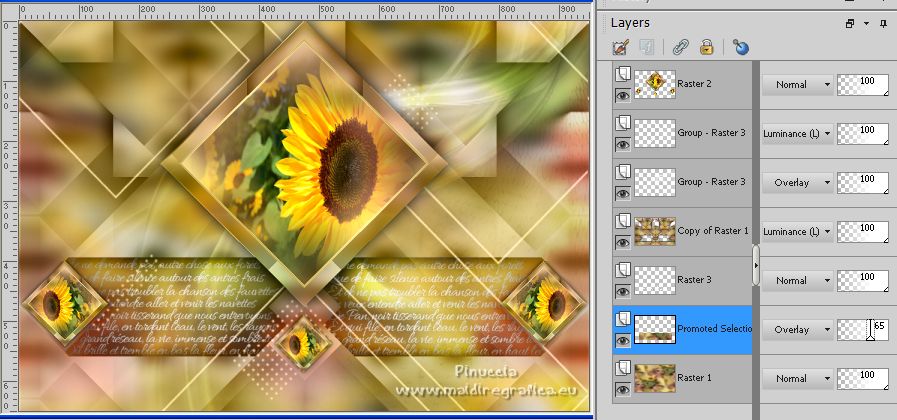

41. Change the Blend Mode of this layer to Overlay
and reduce the opacity +/- 65%.



42. Activate the bottom layer, Raster 1.

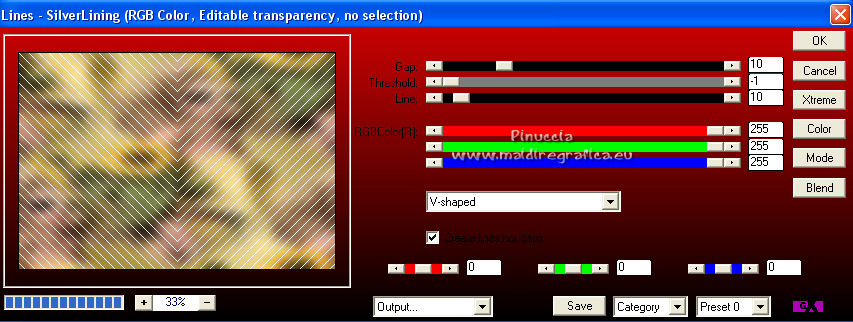

Effects>Plugins>AP 01 [Innovations] - Lines SilverLining.



43. For the borders,
set your foreground color with the initial color (#765b0a) and gradient.



Image>Add borders, 2 pixels, symmetric, background color.
Selections>Select All.

44. Image>Add borders, 10 pixels, symmetric, whatever color.
Selections>Invert.
Flood Fill the selection with your Gradient.

45. Image>Add borders, 2 pixels, symmetric, background color.
Selections>Select All.

44. Image>Add borders, 25 pixels, symmetric, whatever color.
Selections>Invert.

45. Invert the colors of the Gradient.



Flood Fill the selection with your Gradient.

46. Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

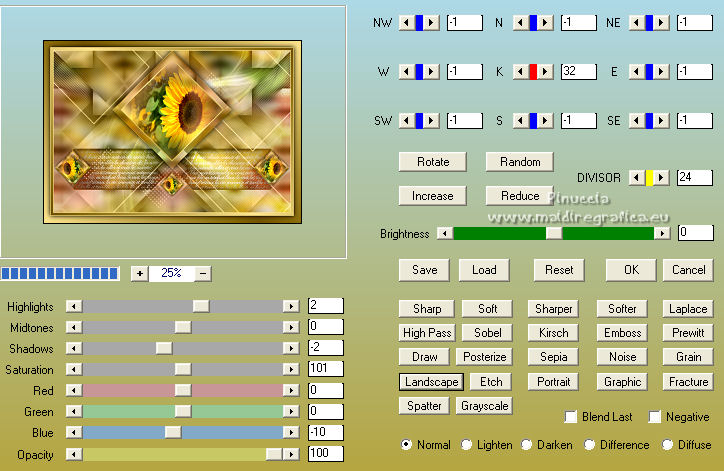

46. Optional: Effects>Plugins>AAA Filters - Custom
Click on Reset to undo the previous settings, and click again on Landscape.



47. Activate again your main tube and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, if necessary (for me 87%), resize all layers not checked.
Move the tube to your liking.
Effects>3D Effects>Drop Shadow, at your choice.

48. Open your deco tube and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, if necessary (for me 30%), resize all layers not checked.
Move the tube to your liking.
Effects>3D Effects>Drop Shadow, at your choice.

49. Image>Add borders, 2 pixels, symmetric, background color.

50. Image>Resize, 1000 pixels width, resize all layers checked.

51. Sign your work on a new layer.
Layers>Merge>Merge All and save as jpg.

For the tubes of this version thanks Roby, Yedralina and Misstyca.






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.
