This tutorial was translated with PSPX3 but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
Your versions here


For this tutorial, you will need:
A tube of yours.
The rest of the material here
The masks are by Flore et Narah.
The rest of the material is by Yedralina.
The tube (not applied) is by Nicole.


Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Toadies - Blur 'em here
Mehdi - Wavy lab 1.1 here
Alien Skin Eye Candy 5 Impact - Perspective Shadow here
Mura's Meister - Perspective Tiling here
AAA Filters - Custom here
Filters Toadies can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.

Copy the selection in the Selections Folder.
Open the masks in PSP and minimize them with the rest of the material.

1. Set your foreground color to #c5a382
set your background color to #746965.



colors used in the 2nd version:
foreground #d89cb7,
background #677368.



3rd color for the two versions: white #ffffff.

Open a new transparent image 900 x 600 pixels.

Effects>Plugins>Mehdi - Wavy lab 1.1.
This plugin works with the colors of your materials palette.
the first is your background color #746965 and the 2nd is your foreground color #c4a382.
Change the 3rd and the 4th colors with white #ffffff.



2. Layers>New Raster Layer.
Selections>Select All.
Open your tube - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

Effects>Image Effects>Seamless Tiling, default settings.



Adjust>Blur>Gaussian Blur - radius 15.



Change the Blend Mode of this layer to Multiply.

3. Set your foreground color to white #ffffff.

Layers>New Raster Layer.
Flood Fill with your foreground color #ffffff.

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask flore18134996554493_gros:

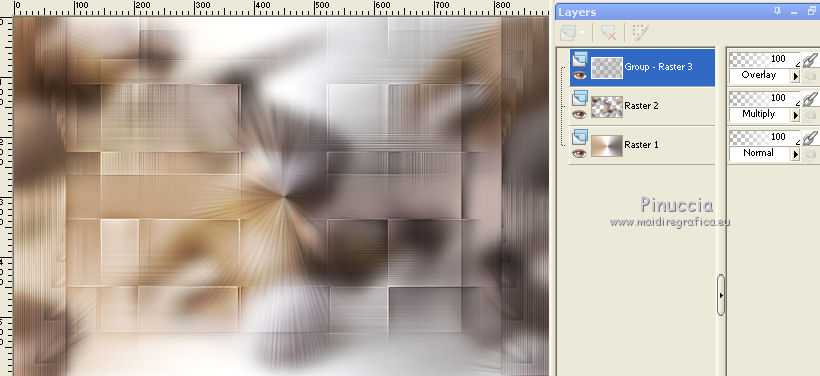

Layers>Merge>Merge group.

Effects>3D Effects>Drop Shadow, color black.



Change the Blend Mode of this layer to Overlay.

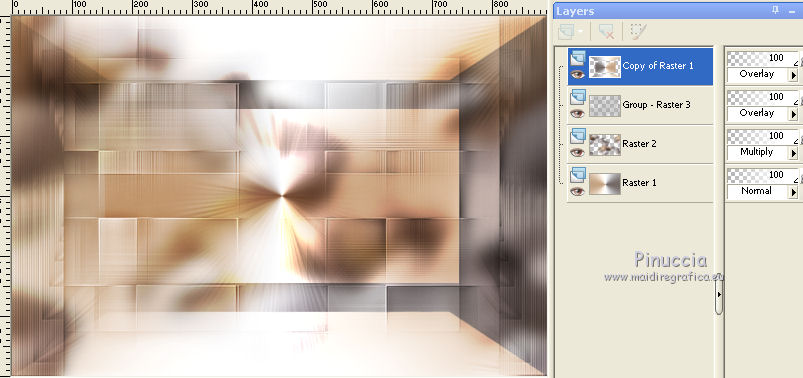

4. Activate the bottom layer - Raster 1.
Layers>Duplicate.
Layers>Arrange>Bring to top.

Image>Mirror.

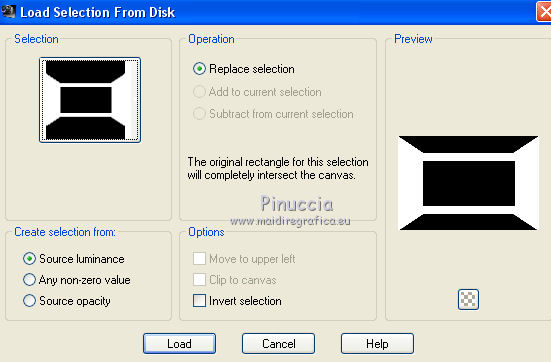

Selections>Load/Save Selection>Load Selection from disk.
Look for and load the selection ©ŠYedralina_Sel110.



Press CANC on the keyboard
Selections>Select None.

Change the Blend Mode of this layer to Overlay.



5. Activate the bottom layer - Raster 1.
Layers>Duplicate.
Layers>Arrange>Bring to Top.

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Narah_mask_0850:



Layers>Merge>Merge group.

don't worry if, for the moment, you'll se nothing.

Image>Miroir.

Change the Blend Mode of this layer to Difference.



Effects>Edge Effects>Enhance More.

Effects>3D Effects>Drop Shadow, same settings.

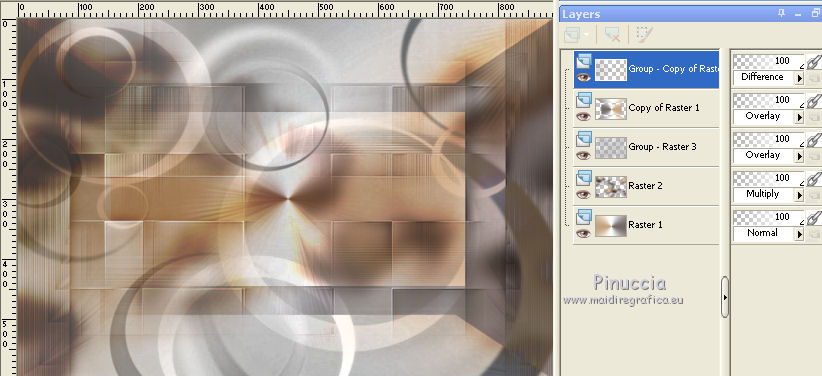

6. Edit>Copy Special>Copy Merged.
Edit>Paste as new image, and minimize this image that you'll use later.



7. Go back to your work.
Again activate the bottom layer, raster 1.
Layers>Duplicate.
Layers>Arrange>Bring to Top.

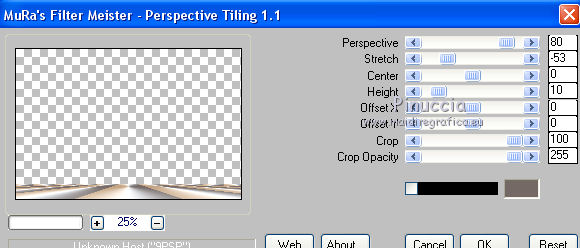

Effects>Plugins>Mura's Meister - Perspective Tiling.

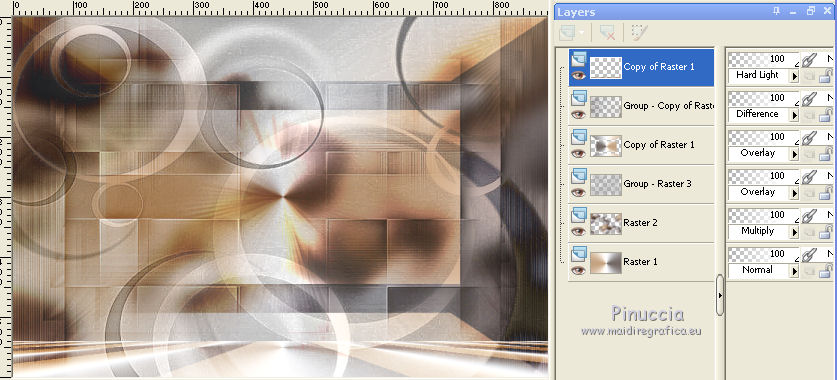

Change the Blend Mode of this layer to Hard Light.



8. Open again your tube - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, if it is necessary, resize all layers not checked.
(for me 80%).

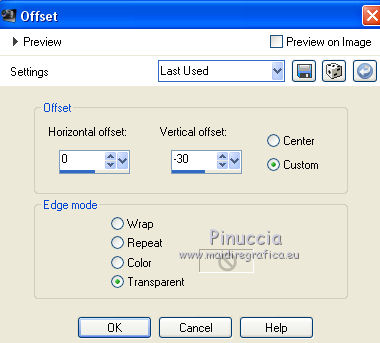

Effects>Image Effects>Offset.



Effects>Plugins>Alien Skin Eye Candy 5 Impact - Perspective Shadow.
Select the preset Drop Shadow,Blurry and ok.



9. Open the text Text_Expressions©Yedralina.png - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Move in the upper left.

Effects>3D Effects>Drop Shadow, same settings.



10. Layers>Merge>Merge visible.
Selections>Select All.
Image>Add borders, 20 pixels, symmetric, whatever colo.
Sélections>Invert.

Activate the image minimized at step 6.



Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

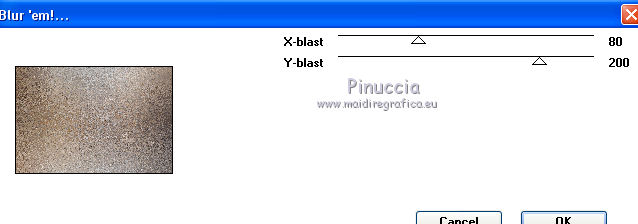

Effects>Plugins>Toadies - Blur'em



Selections>Invert.

Effects>3D Effects>Drop Shadow, same settings.



Selections>Select All.

11. Image>Add borders, 10 pixels, symmetric, whatever color.
Selections>Invert.
Edit>Paste into selection (the image is still in memory).

Selections>Select All.

12. Image>Add borders, 30 pixels, symmetric, whatever color.
Selections>Invert.
Edit>Paste into selection (the image is still in memory).

Effects>Plugins>Toadies - Blur'em, same settings.

Selections>Invert.

Effects>3D Effects>Drop Shadow, same settings.

13. Sign your work on a new layer.

Image>Add borders, 1 pixel, symmetriche, with a color of your image.

Image>Resize, 950 pixels widht, resize all layers checked.

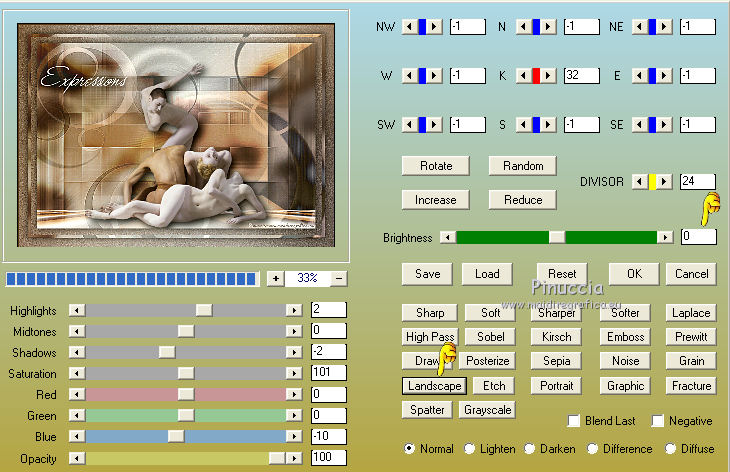

14. Effects>Plugins>AAA Filters - Custom,
select Landscape and change the value Brightness according to your colors.



Save in jpg.

The tube of this version is by AnaRidzi






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

13 August 2016
