This tutorial was written with CorelX19 and translated with CorelX and CorelX17, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


italian translation here
your versions qui/here


For this tutorial, you will need:
A woman tube.
The rest of the material (by Yedralina) here
The tube used and not supplied is by Azalée (Femme-1640-Azalee)
Selections Sel235 - Sel243
Text_Butterfly-©Yedralina.


Plugins:
consult, if necessary, my filter section here
Screenworks - Point Array here
Transparency - Eliminate Black here
AAA Filters - Custom here
Filters Unlimted 2.0 here
Mura's Meister - Copies here
Alien Skin Eye Candy 5 Impact - Perspective Shadow, Chrome here
Filters Toadies et &Neu can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here

Copy the selections in the Selections Folder.

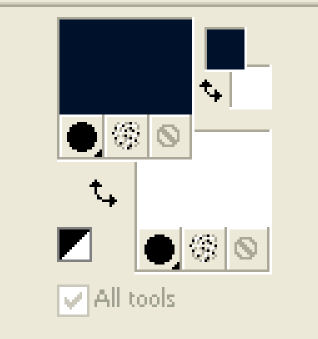

1. Set your foreground color to the dark color #03152d,
set your background color with the light color #ffffff.

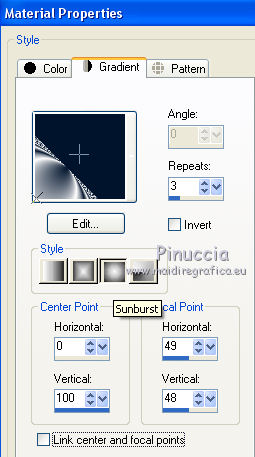

Set your foreground color to foreground/background Gradient, style Sunburst.



2. Open a new transparent image 950 x 650 pixels,
Flood Fill with your gradient.

3. Activate the Magic Wand tool , tolerance and feather 0,
clic in the gradient black color



4. Selections>Invert.
Selections>Promote selection to layer.

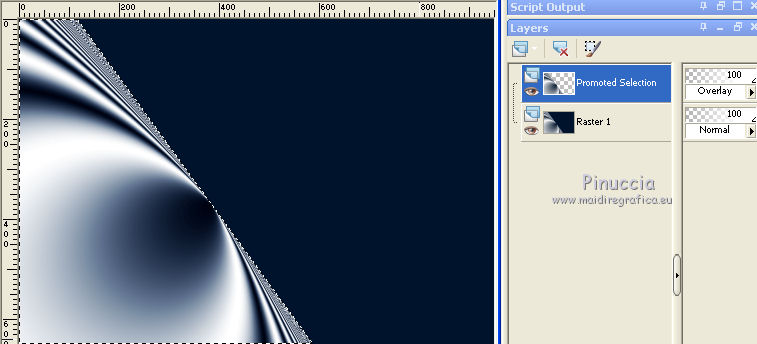

5. Change the Blend Mode of this layer to Overlay.

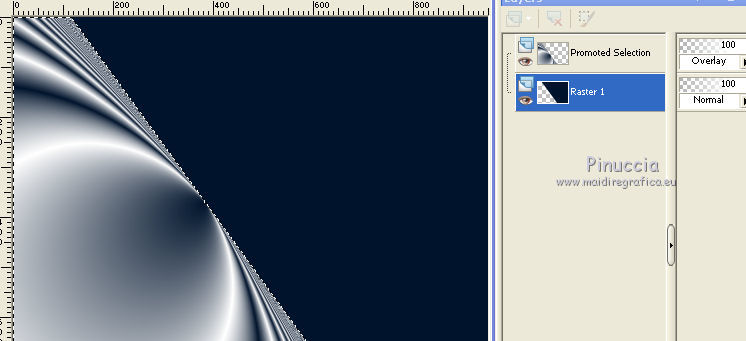

6. Activate the Gradient layer - Raster 1.
Press CANC on the keyboard



Selections>Select None.

7. Layers>New Raster Layer.
Selections>Select All.

Open the background image "Imagen 5" - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

8. Optional: Image>Mirror.

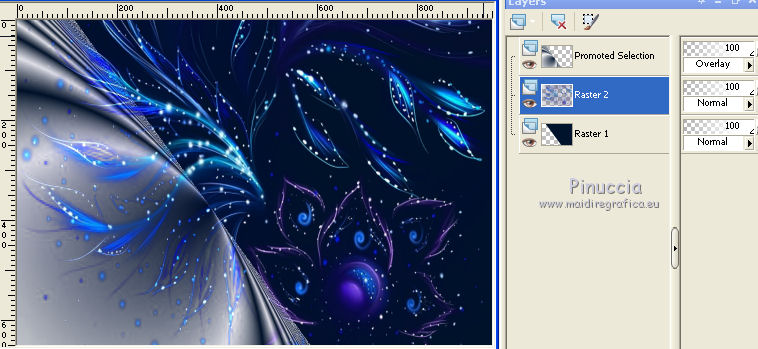

9. Effects>Plugins>Transparency - Eliminate Black.
The Plugins doesn't get window: Result

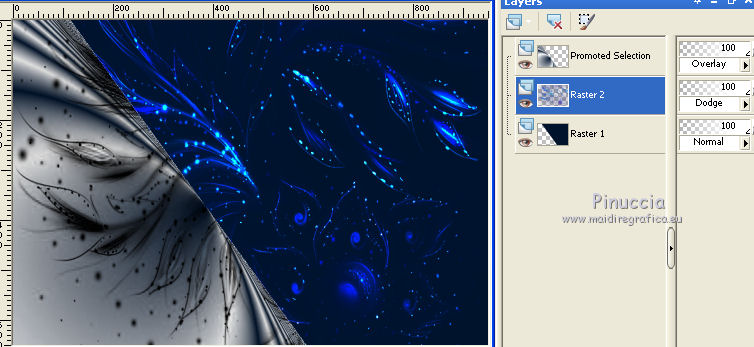

10. Change the Blend Mode of this layer to Dodge



11. Edit>Copy.
Edit>Paste as new image and work on this image:
Image>Mirror.
Image>Flip.
Minimize the image: you'll use it later.

12. Go back to your work.
Layers>New Raster layer.

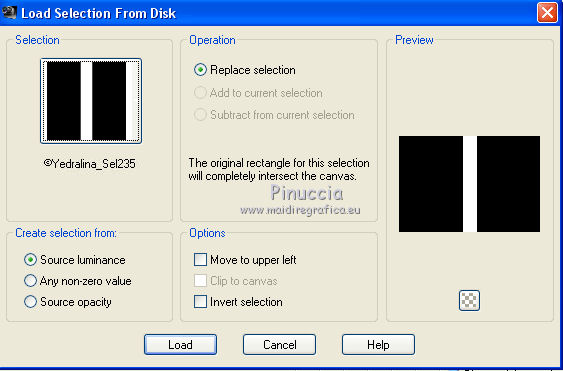

13. Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection sel235.

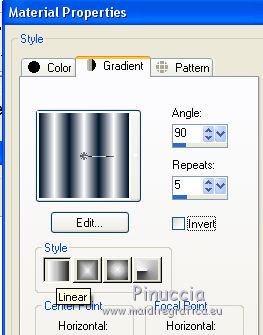

Change the settings of your Gradient, style Linear.



Flood Fill the selection with your gradient.

14. Selections>Modify>Contract - 10 pixels.
Press CANC on the keyboard.
Selections>Select None.

15. Image>Resize, to 85%, resize all layers not checked.

16. Effects>Plugins>Mura's Meister - Copies.



17. Image>Mirror.

Effects>3D Effects>Drop Shadow, color black.

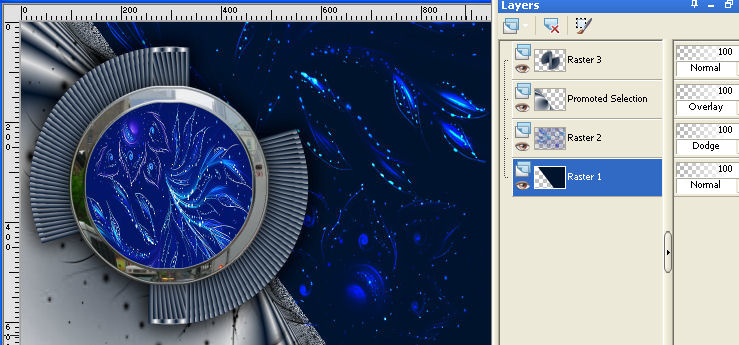

Layers>Arrange>Move up.

18. Layers>New Raster layer.

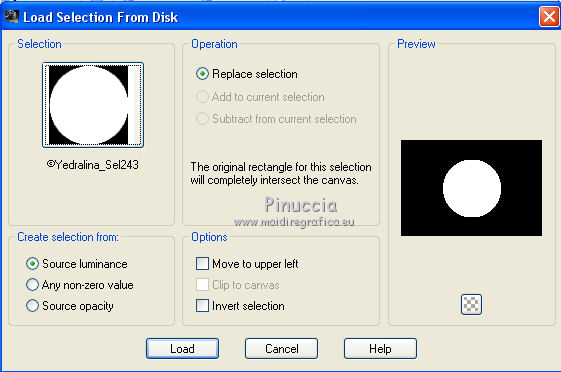

Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection sel243.



19. Set your foreground color to Color.
Flood Fill the selection with your dark foreground color.

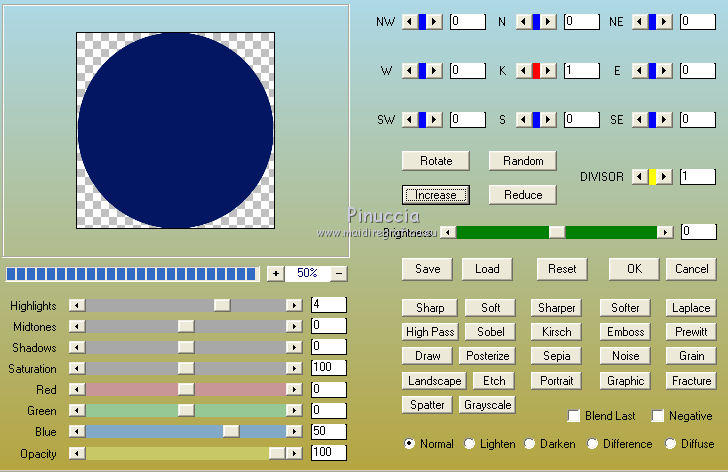

20. Effects>Plugins>AAA Filters - Custom
Clic on Landscape and set your colors according to your image.
For me Highlights 4 Blue 50



21. Selections>Modify>Contract - 25 pixels.

22. Layers>New Raster Layer.
Activate the image minimized at step 11 - Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.

23. Effects>Edge Effects>Enhance.

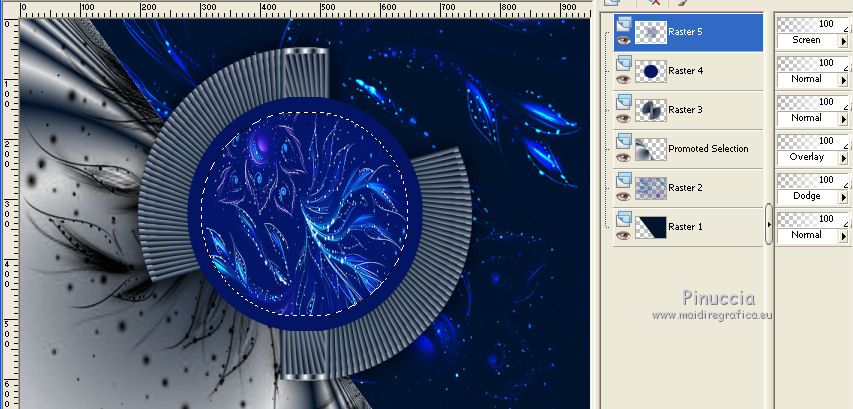

24. Change the Blend Mode of this layer to Screen, or as your prefer.



25. Selections>Invert.

Effects>Plugins>Alien Skin Eye Candy 5 Impact - Perspective Shadow.
Select the preset Drop Shadow Blurry and ok.



26. Selections>Invert.
Layers>Merge>Merge down.

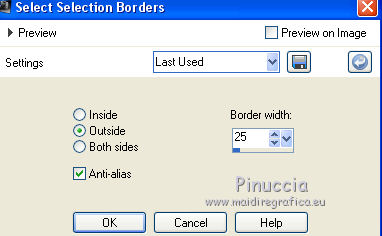

27. Selections>Modify>Select Selection Borders.



28. Effects>Plugins>Alien Skin Eye Candy 5 Impact - Chrome.
select the preset City outside and ok.



(you can colorize the bord as you prefer, according to your colors:
Adjust>Hue and Saturation>Colorise...).

29. Selections>Select None.

30. Effects>3D Effects>Drop Shadow, color black.



31. Layers>Merge>Merge down.

32. Effects>3D Effects>Drop Shadow, color black.

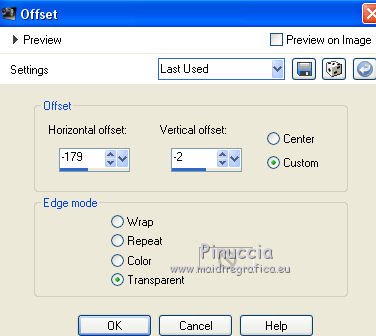

33. Effects>Image Effects>Offset.



34. Activate the bottom layer, Raster 1.



35. Effects>Plugins>Cybia - Screenworks - Point Array



36. Image>Add borders, 1 pixel, symmetric, dark color.
Iamge>Add borders, 2 pixel, symmetric, light color.

37. Selections>Select All.
Edit>Copy.

38. Image>Add borders, 50 pixels, symmetric, dark color or black.
Selections>Invert.

Edit>Paste into Selection.

39. Adjust>Blur>Gaussian blur - radius 10.



40. Image>Mirror.
Selections>Invert.

41. Effects>3D Effects>Drop Shadow, color black.



Selections>Select None.

42. Open your tube - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, according to your tube (for me 120%), resize all layers not checked.
Move the tube to the right side, see my example.

43. Effects>3D Effects>Drop Shadow, color black.



44. Open the text Butterfly - Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Place the text as in my example.

45. Effects>3D Effects>Drop Shadow, color black.



46. Image>Add borders, 1 pixel, symmetric, dark color or black.

47. Sign your work on a new layer.

48. Layers>Merge>Merge all.

Image>Resize, 950 pixels width, resize all layers checked.

Save as jpg.

The tube of this versions are by

OBG



Criss






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

28 November 2016
