This tutorial was translated with PSP09 but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French translation here
Your versions here




For this tutorial, you will need:



Thanks for the tubes Kamil and for the mask Adita.
(you find here the links to the material authors' sites)




consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Xero - Porcelain here
Andromeda - Perspective here
AAA Frames - Foto Frame here
Simple - Zoom out and flip here
Tramages - Pool Shadow here
Filters Simple and Tramages can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.



Copy the selection in the Selections Folder.

Open the mask in PSP and minimize them with the rest of the material.

1. Open a new transparent image 450 x 600 pixels.

2. Set your foreground color to #03172b,
and your background color to #92d6f6.



Flood Fill the transparent image with your foreground color #03172b.

3. Calques>Nouveau calque raster.
Flood Fill the layer with your background color #92d6f6.

4. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Silvie_Mask_Flower3FF.



Layers>Merge>Merge Group.

Adjust>Sharpness>Sharpen More.

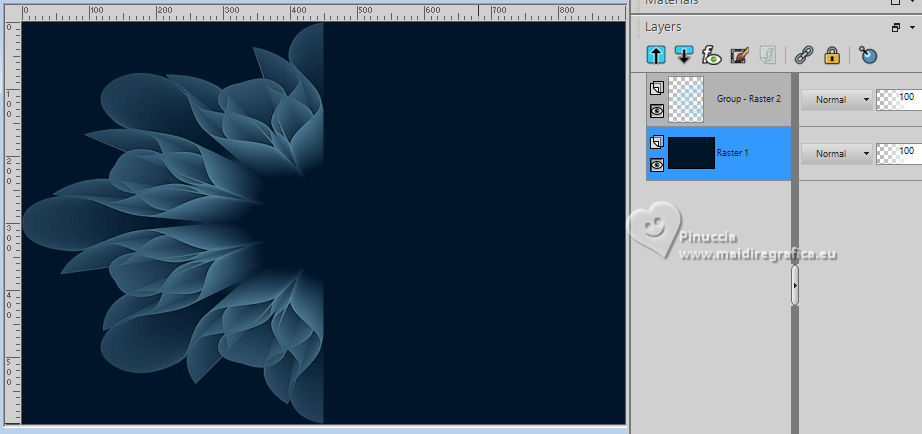

5. Activate the layer below, Raster 1.

Image>Canvas Size - 900 x 600 pixels.



Flood Fill with your foreground color #03172b.



6. Activate the layer above, Groupe-Raster 2.
Layers>Duplicate.
Image>Mirror>Mirror Horizontal.

Layers>Merge>Merge Down.

7. Effects>3D Effects>Drop shadow, color #ffffff.

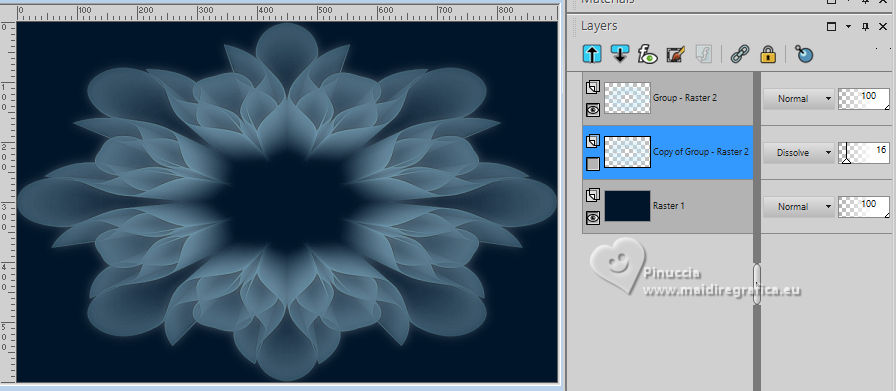

8. Layers>Duplicate.
Change the Blend Mode to Dissolve and reduce the opacity to 16.
Layers>Arrange>Move Down and close this layer for a moment.



9. Activate again the layer above of the mask.

Layers>Duplicate.
Layers>Merge>Merge Down.

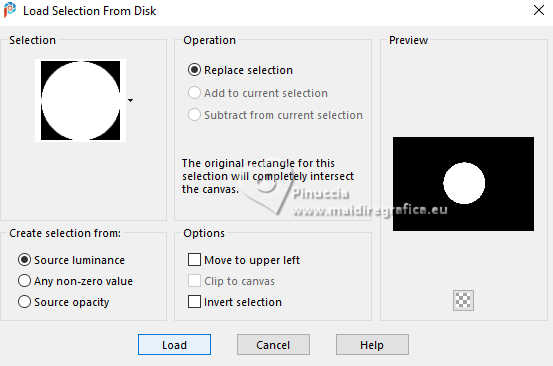

10. Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection sel.440.nines

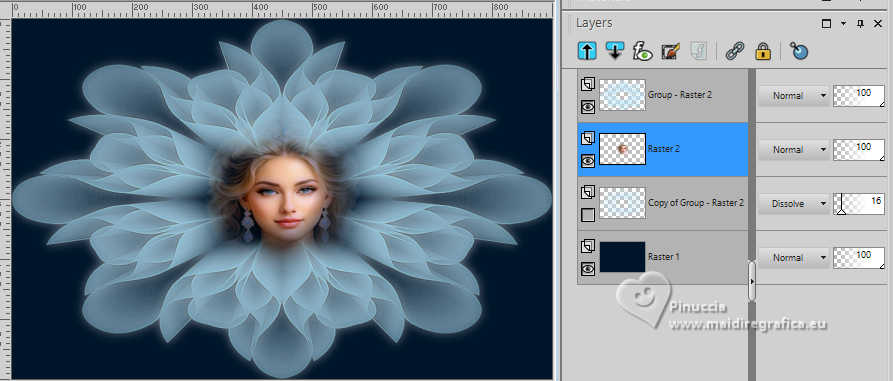

11. Layers>New Raster Layer.

Open cara duplicada del tube CV_1006_003 by Virginia

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

12. Effects>Plugins>Xero - Porcelain, default settings.



13. Layers>Arrange>Move Down.



14. Open the closed layer.

Note: checking the final tag of the original tutorial,
on the background layer I added this step:

Adjust>Add/Remove Noise>Add Noise



see the second tag under the title
It's up to you to decide what to do

Layers>Merge>Merge visible.

15. Effects>Plugins>AAA Frames - Foto Frame.



16. Image>Resize, to 80%, resize all layers not checked.

17. Effects>Plugins>Andromeda - Perspective
Click on Presets



Set the settings and click on the sign at the bottom right to apply



Again click on the sign at the bottom right to close.

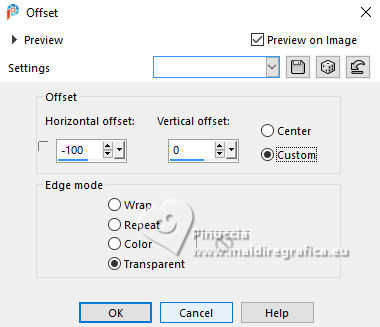

18. Effects>Image Effects>Offset.



If you have problems with the filter, after the step 16 you can do this:

Objects>Align>Left
Activate your Pick Tool
in mode Scale
pull the right central node to the left, until 440 pixels



in mode Perspective
pull the top right node down, until 140 pixels,
the opposite node will move symmetrically



19. Effects>3D Effects>Drop shadow, same settings.



Layers>Duplicate.
Image>Mirror>Mirror Horizontal.

20. Layers>New Raster Layer.
Layers>Arrange>Send to bottom.
Flood Fill the layer with your background color #92d6f6.

21. Selection Tool
(no matter the type of selection, because with the custom selection your always get a rectangle)
clic on the Custom Selection
and set the following settings.



22. Layers>New Raster Layer.

Activate the mask Silvie_Mask_Flower3FF

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

Change the Blend Mode of this layer to Luminance (L) or Hard Light.

23. Layers>Duplicate.
Image>Mirror>Mirror Horizontal.

Layers>Merge>Merge Down.

24. Activate your top layer.

Open the tube CV_1006_003

Erase the watermark and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, 2 times to 80%, resize all layers not checked.

Move the tube down.



25. Effects>3D Effects>Drop shadow, same settings
(if you use another tube, you can change)



26. Layers>Merge>Merge All.

27. Image>Ajouter des bordures, 2 pixels, symmetric, couleur #000000.
Image>Add borders, 2 pixels, symmetric, background color #92d6f6.
Image>Add borders, 10 pixels, symmetric, color #ffffff.
Image>Add borders, 2 pixels, symmetric, background color #92d6f6.
Image>Add borders, 40 pixels, symmetric, foreground color #03172b.

28. Activate your Magic Wand Tool
and click in the last border to select it.

29. Effects>Plugins>Filters Unlimited 2.0 - Simple - Zoom out and flip.



30. Adjust>Blur>Gaussian Blur - radius 10.



31. Effects>Plugins>Tramages - Pool Shadow, default settings.

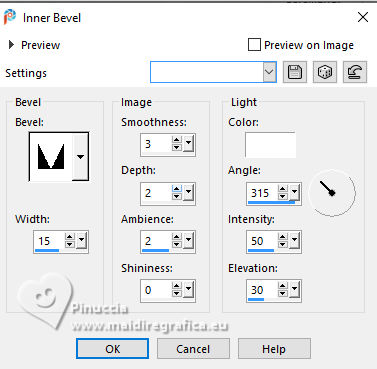

32. Effects>3D Effects>Inner Bevel.



33. Selections>Invert.

Effects>3D Effects>Drop shadow, same settings.



Edit>Repeat Drop Shadow.

Selections>Select None.

34. Sign your work on a new layer.
Add the author and translator's watermarks.

Layers>Merge>MErge All and save as jpg.

For the tube of this version thanks Luz Cristina



Version with the noise à 15 (see step 14)






If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

5 Septembre 2024
