This tutorial was created with PSP X2 but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here

French translation here
Your versions here

For this tutorial, you will need:
Material here
The tubes are by Tocha, Min@ and DBK-Katrina.

Filters:
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
VM Distortion - Vision Impossible here
Mura's Meister - Perspective Tiling here
Mura's Meister - Pole Transform here
Filters VM Distorsion can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited

Open the masks and the golden pattern in PSP and minimize with the rest of the material.

1. Set the Foreground color to #f3e897,
and the Background color to #000b41.

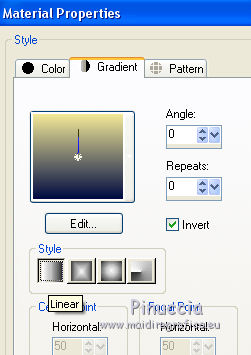

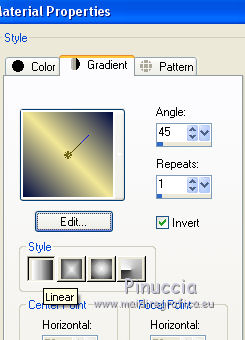

Set the foreground color on Foreground/background Gradient, style Linear.



Open a new transparent image 900 x 600 pixels.

Flood Fill with the gradient.

3. Effects>Plugins>Filters Unlimited 2.0 - VM Distortion - Vision Impossible, standard.



4. Open the tube Min@.interno03-24.10.13 - Edit>Copy.
Back to your work and go to Edit>Paste as new layer.

5. Layers>New Raster Layer.

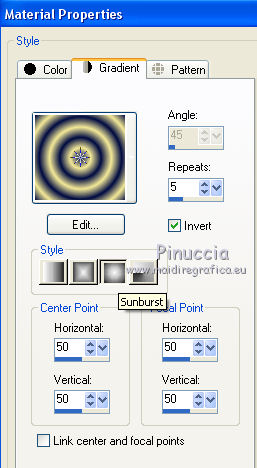

Change your Gradient, style Sunburst.



Flood Fill the layer with the gradient.

6. Effets>Modules Externes>Mura's Meister - Pole Transform.



7. Activate the Tool Magic Wand
clic on the center to select.

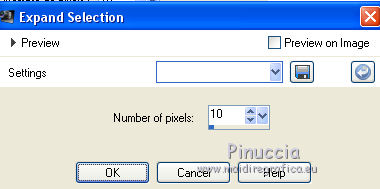

8. Selections>Modify>Expand - 10 pixels.

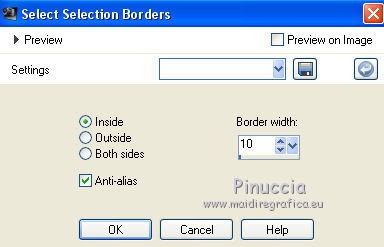

9. Selections>Modify>Select Selections Borders.



10. Layers>New Raster Layer.

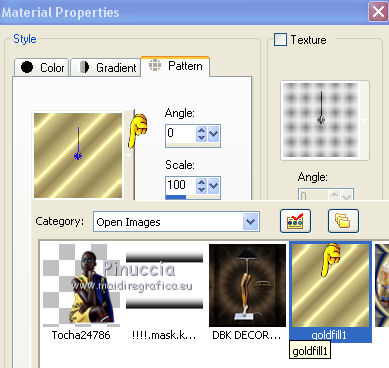

Set the Foreground Color to Pattern, and set - under the Category Open Images - the golden pattern.



Flood Fill the selection with the golden pattern.

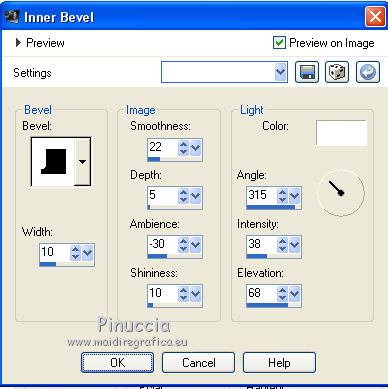

11. Effects>3D Effect>Inner Bevel.



Selections>Select None.

12. Layers>New Raster Layer.
Flood Fill with background color #000b41.

13. Selections>Select All.

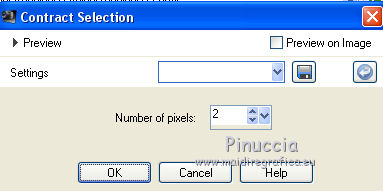

Selections>Modify>Contract - 2 pixels.



Clic CANC on the keyboard

Selections>Select None.

14. If necessary, before merging the layers, you can still move your paysage.

Layers>Merge>Merge visible.

15. Edit>Copy.

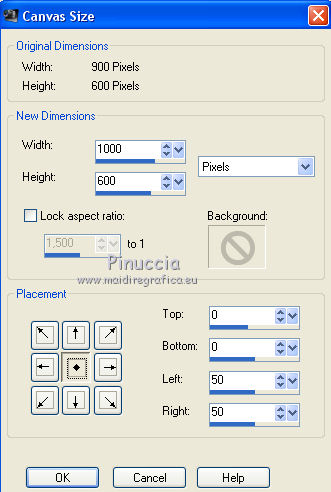

16. Image>Canvas Size - 1000 x 600 pixels.



17. Select the transparent parts with the Tool Magic Wand .

18. Edit>Paste Into Selection.

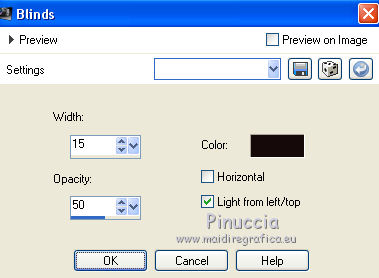

19. Effects>Texture Effects>Blinds, color black.



20. Selections>Select None.

21. Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask !!!.mask.ket-fadesuave:



Layers>Merge>Merge group.

Again Layers>New Mask layer>From image
Open the menu under the source window
and select the mask !!!.mask.ket-fadesuave.
Layers>Merge>Merge group.

22. Image>Canvas Size - 1000 x 800 pixels.



23. Layers>New Raster Layer.
Layers>Arrange>Send to Bottom.

Set Foreground color to Gradient and change the settings.



Flood Fill the layer with the gradient.

Layers>Duplicate.

24. Effects>Texture Effects>Tiles.



25. Effects>Plugins>Mura's Meister - Perspective Tiling.



26. Activate the top layer.

Open the Tocha24786 - Edit>Copy.
Back to your work and go to Edit>Paste as new layer.

Image>Mirror.

Image>Resize - 1 time to 80% et 1 time to 90%, resize all layers not checked.

Move the tube on the right side.

27. Effects>3D Effects>Drop Shadow, color black.



28. Open the tube DBK DECOR-FURN 090 - Edit>Copy.
Back to your work and go to Edit>Paste as new layer.

Image>Mirror.

Image>Resize - 3 times to 80%, resize all layers not checked.

Move the tube on the left side.

29. Effects>3D Effects>Drop Shadow, color black.



30. Layer>Merge>Merge All.

31. Image>Add borders - 30 pixels, symmetric, color #1f2a58.

Sign your work and save as jpg.

Image>Ajouter des bordures, 30 pixels, symétrique, couleur #1f2a58.

Signer votre travail et enregistrer en jpg.

The tubes of this version are by Tocha, Min@ et Gabry.






If you have problems or doubt, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

24 February 2014
