This tutorial was translated with PSPX7, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French translation here
your versions ici


(difficulty level = easy)
Althouth it is a very simple tutorial, the difficulty will lie in the choice of tubes,
colors and shades, which will depend by your creativity.



For this tutorial, you will need:

Les tubes are by Ligia
(you find here the links to the material authors' sites)



Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
VM Natural - Speed here
Mura's Meister - Cloud here
Filters VM Natural can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited



You can change Blend Modes according to your colors.



1. Open a new transparent image 900 x 600 pixels.

Selections>Select All.

2. Open the image grafico

Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
(if necessary, colorize according to your colors)
Selections>Select None.

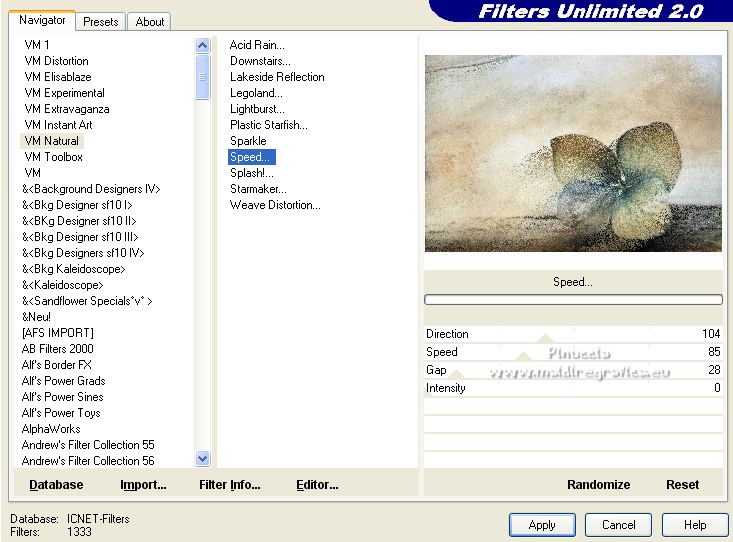

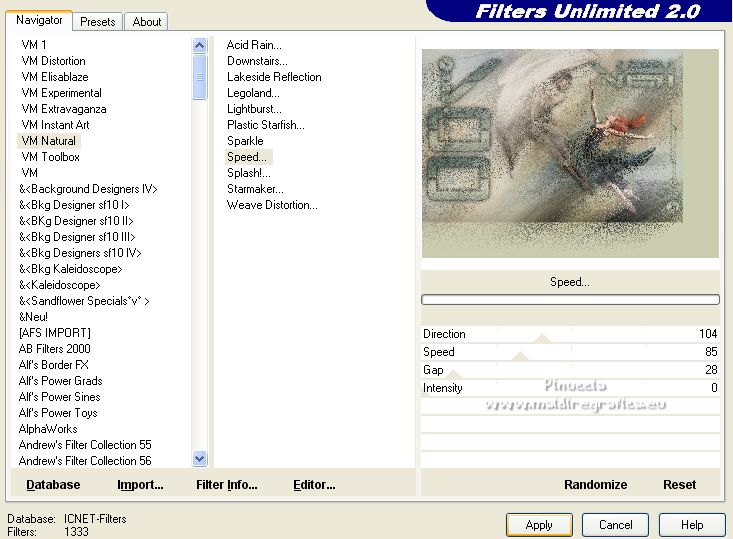

3. Effects>Plugins>Filters Unlimited 2.0 - VM Natural - Speed, default settings.



the result of this filter can change if used alone,
and also it may change depending on the version of Unlimited used).

Repeat the Effects another time.

Layers>Duplicate.

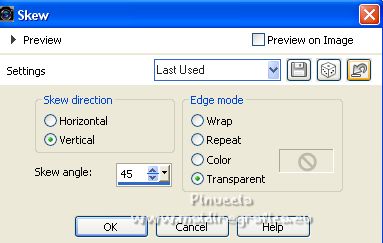

4. Effects>Geometric Effects>Skew.



Reduce the opacity of this layer to 50%.

Effects>3D Effects>Drop Shadow, color black.



5. Set your foreground color to #2b4545,
and your background color to #cbceb1.



(adapt, if you use other tubes).

6. Open the tube vooverde_li

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Image>Resize, 2 times to 80%, resize all layers not checked.

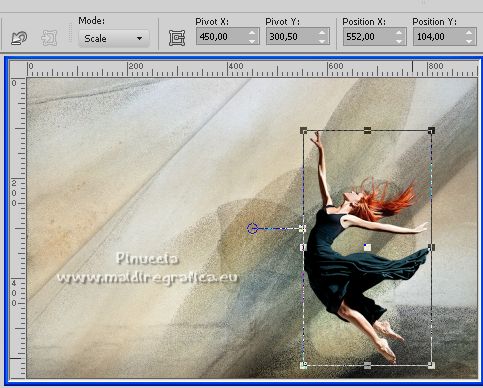

Activate your Pick Tool
and set Position X: 552,00 and Position Y: 104,00.
(or, if you use your tubes, you will find a similar position)



7. Layers>Duplicate.
Activate the layer below of the original.

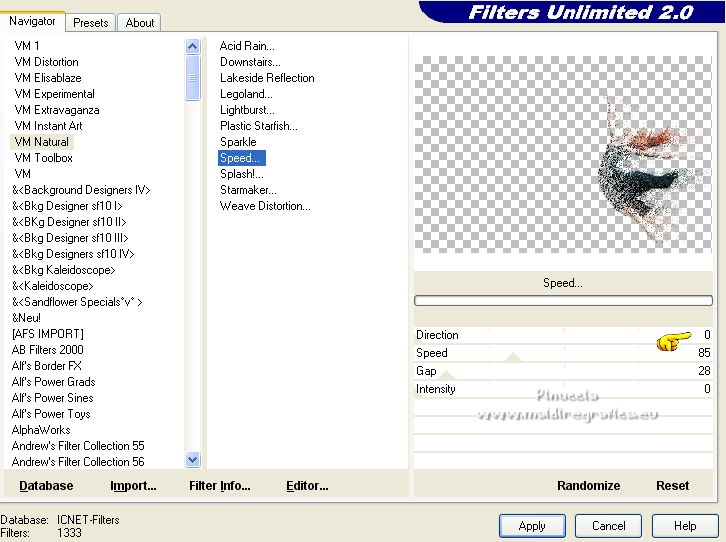

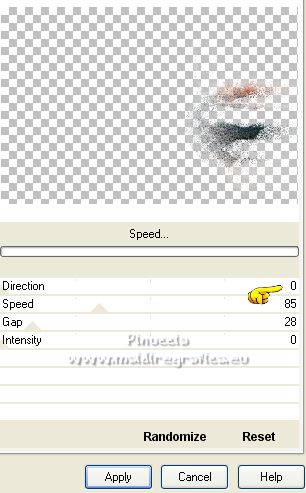

Effects>Plugins>Filters Unlimited 2.0 - VM Natural - Speed, Direction 0



Repeat the Effect another time
(you have to place the setting again, because Unlimited does not save it in memory).

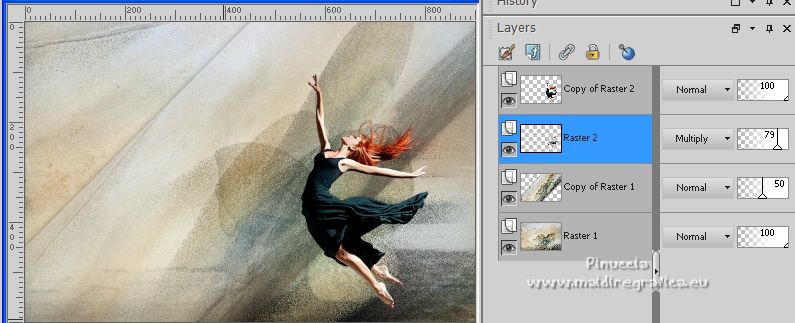

Change the Blend Mode of this layer to Multiply and reduce the opacity to 79%,
or according to your colors.



Activate the layer above of the copy.

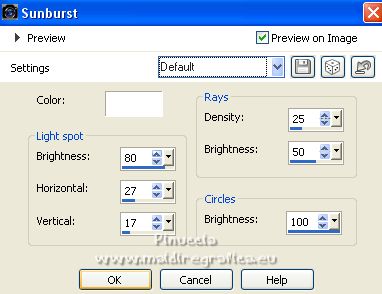

Effects>Illumination Effects>Sunburst.



Edit>Repeat Sunburst.
(important:
if you use other tubes the effect will be different,
you need to adjust the tube you use, forming an effect like the model).

8. Open the tube vooMan

Edit>Copy.
go back to your work and go to Edit>Paste as new layer.

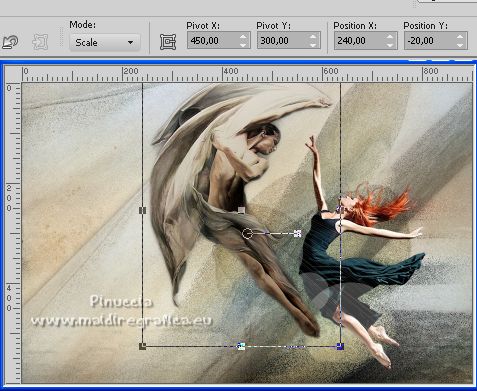

Pick Tool
and set Position X: 240,00 and Position Y: -20,00.



(adapt according to your tube)

Effects>3D Effects>Drop Shadow, same settings.



Layers>Duplicate.

Activate the layer above of the original.

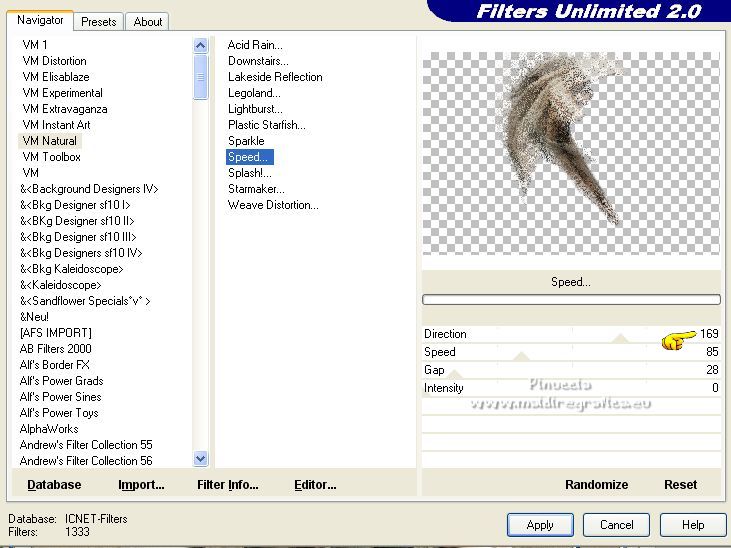

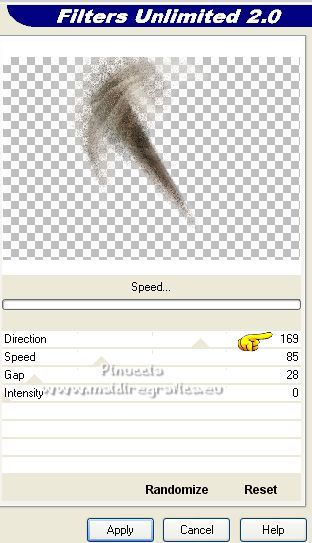

Effects>Plugins>Filters Unlimited 2.0 - VM Natural - Speed, direction 169.



Repeat the Effect another time.
Don't forget: you need set again Direction to 169



Change the Blend Mode of this layer to Multiply.

9. Activate the layer above of the copy.

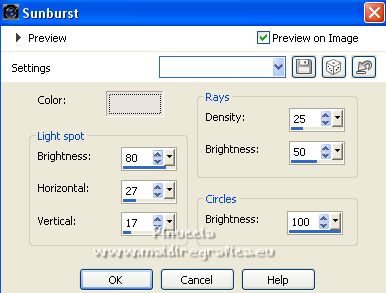

Effects>Illumination Effects>Sunburst - color #e8e3dc



Edit>Repeat Sunburst.

(important:
if you use other tubes the effect will be different,
you need to adjust the tube you use, forming an effect like the model).

10. Open the texte

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Pick Tool
Set Position X: 235,00 and Position Y: 267,00.

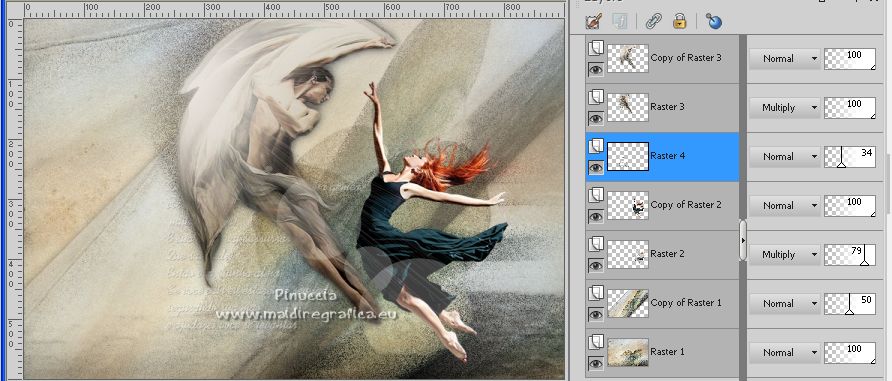

Layers>Arrange>Move Down - 2 times (under the layer of the tube vooverde)
and reduce the opacity to 34%.



11. Activate your top layer.

Open Texto 1
(colorize according to your colors or used the supplied text)

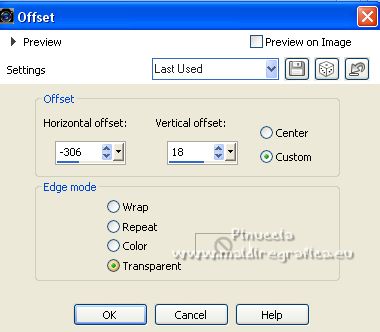

Effects>Image Effects>Offset.



Effects>3D Effects>Drop Shadow, same settings.



Edit>Repeat Drop Shadow.

If you want to use the supplied text ,
this text already have the drop shadow,
you can slightly change the parameters of your Offset Effect.



12. Open the tube deco 1

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
colorize if necessary.

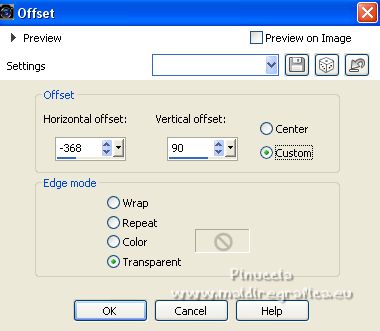

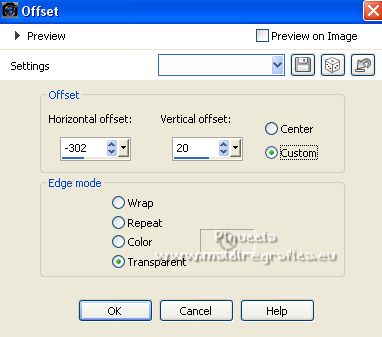

Effects>Image Effects>Offset.



13. Open texto2

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

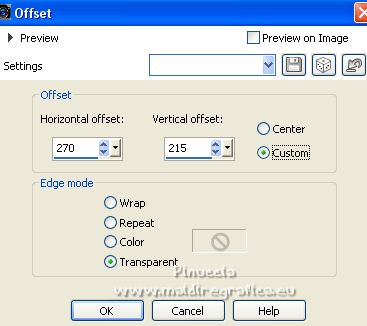

Effects>Image Effects>Offset.



Effects>3D Effects>Drop Shadow, same settings.



Edit>Repeat Drop Shadow.

If you want, you can use the supplied text ,
also with its drop shadow.
You can keep the settings of your Offset Effect.



14. Open deco2

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Colorize if necessary.
Move the tube at the bottom right.

15. Layers>Merge>Merge visible.

Image>Resize, to 80%, resize all layers checked.
Adjust>Sharpness>Sharpen.

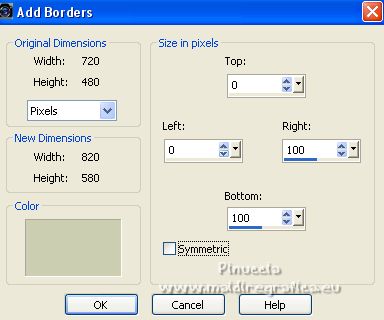

16. Image>Add borders, symmetric not checked, background color.



Activate your Magic Wand Tool
and click on the border to select it.

Effects>Plugins>VM Natural - Speed, par défaut.

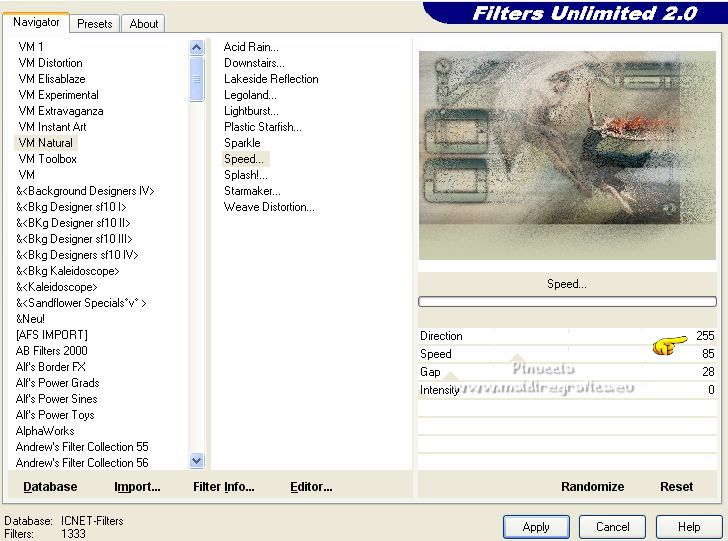

Repeat Effects>Plugins>VM Natural - Speed, direction 255.



Layers>New Raster Layer.

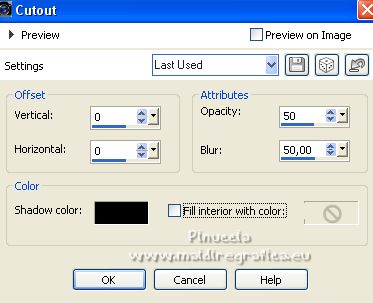

Effects>3D Effects>Cutout.



Stay on this layer.

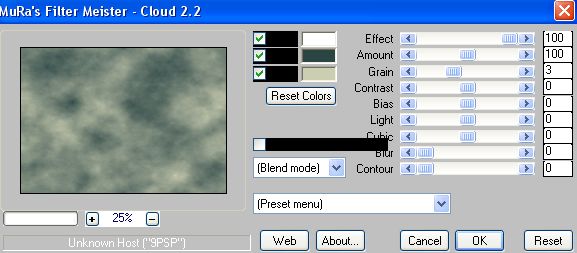

Effects>Plugins>Mura's Meister - Cloud.



Reduce the opacity of this layer to 71%.

Selections>Invert.

Effects>3D Effects>Drop Shadow, color black.



Edit>Repeat Drop Shadow.

Selections>Select None.

17. Open the tube florzinha_li

Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Pick Tool
Position X: 614,00 and Position Y: 373,00.



Effects>3D Effects>Drop Shadow, color black.



18. Image>Add borders, 1 pixel, symmetric, foreground color.

Sign your work and save as jpg.

For the tubes of this version thanks Nena Silva



Your versions here




If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

3 December 2022
