This tutorial was created with PSPX8 and translated with PSPX3, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French translation here
your versions ici


Dedicated to the poet Rose More
https://www.youtube.com/channel/UCbDCohRcVXZhgD6xegarp-A?view_as=subscriber



For this tutorial, you will need:
Material here
Tube 5077-luzcristina
Mask Narah_mask_0597.
Deco: decolc
(you find here the links to the material authors' sites)



Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Italian Editors Generatore here
Simple - Top Left Mirror, Centre Tile here
Alien Skin Eye Candy 5 Impact - Glass, Perspective Shadow here
AAA Frames - Texture Frame here
Filters Italian Editors and Simple can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited





You can change Blend Modes according to your colors.
In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here


Copy the preset in the folder of the plugin Alien Skin Eye Candy 5 Impact>Settings>Glass.
One or two clic on the file (it depends by your settings), automatically the preset will be copied in the right folder.
why one or two clic see here

Copy the script circulo1_mp in the Folder Script Restricted
(if you have problems with the script, you can use the layer of the effect joined in the material).

Copy the preset Lights_lc10_mp in the Presets Folder.

1. Open a new transparent image 1000 x 700 pixels.

Set your foreground color to #450803,
and your background color to #cd534d.



Set your foreground color to a Foreground/Background Gradient, style Linear.



Flood Fill the transparent image with your Gradient.

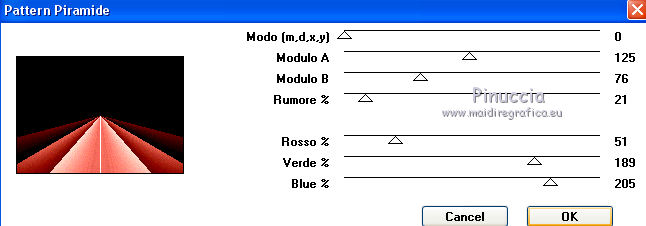

2. Effects>Plugins>Italian Editors Generatore - Pattern Piramide, default settings.



if you are using other colors, play with Rosso% Verde% and Blue%

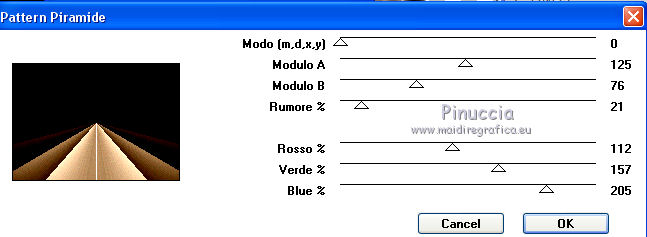

for my second version

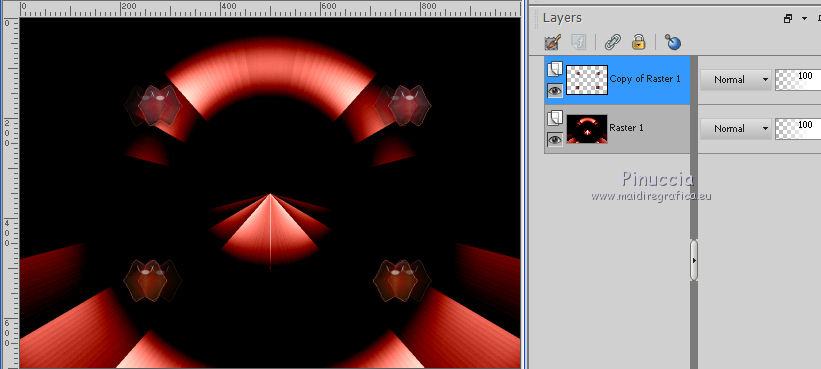

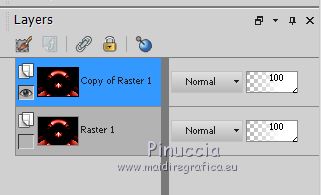

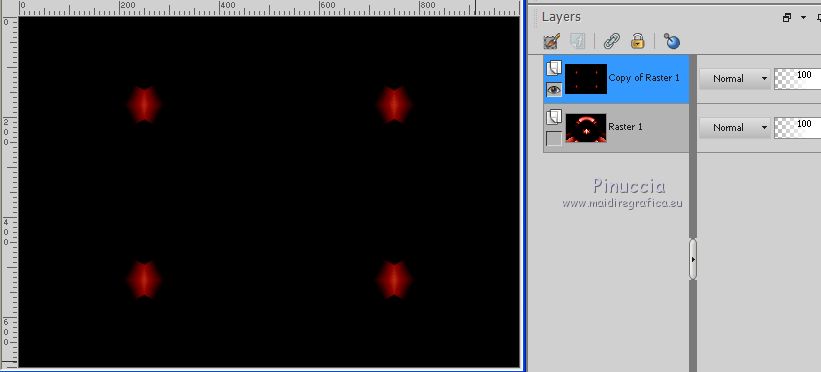

Layers>Duplicate.
Close the layer Raster 1 and stay on the layer of the copy.

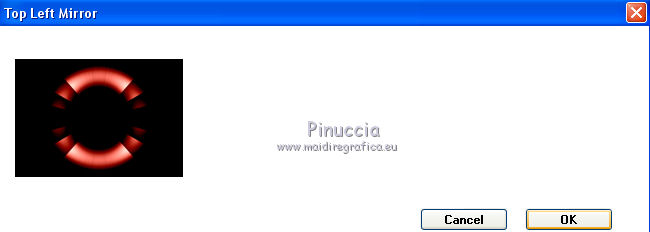

3. Effects>Plugins>Simple - Top Left Mirror.



4. Effects>Geometric Effects>Sphèrize



5. Effects>Plugins>Simple - Centre tile.
This effect works without windows; result

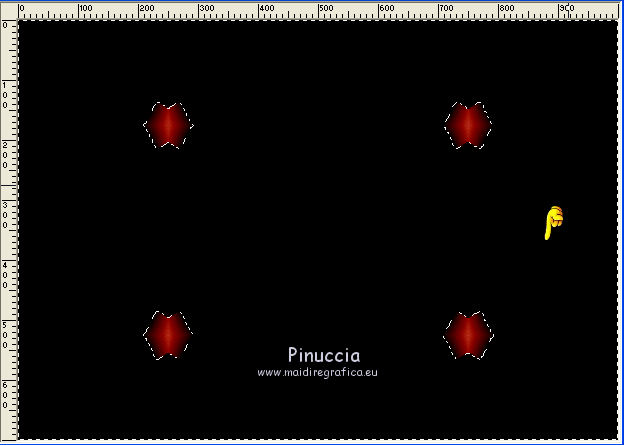

Activate your Magic Wand Tool



and click outside the red figure
and the red figures will be selected.




Press CANC on the keyboard
Selections>Invert.

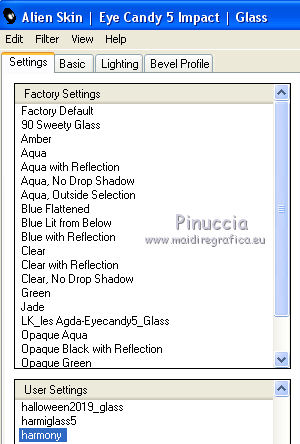

6. Effects>Plugins>Alien Skin Eye Candy 5 Impact - Glass.
select the preset harmony and ok.

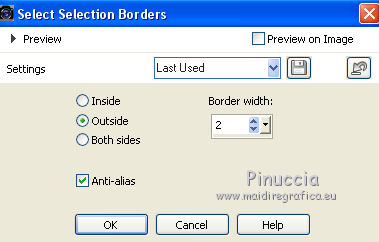

7. Selections>Modify>Select Selection Borders.



Layers>New Raster Layer.
Flood Fill with your background color #cd534d.
Selections>Select None.
Layers>Merge>Merge Down.

8. Effects>Image Effects>Seamless Tiling, side by side



Open again the layer Raster 1 and stay on the top layer.

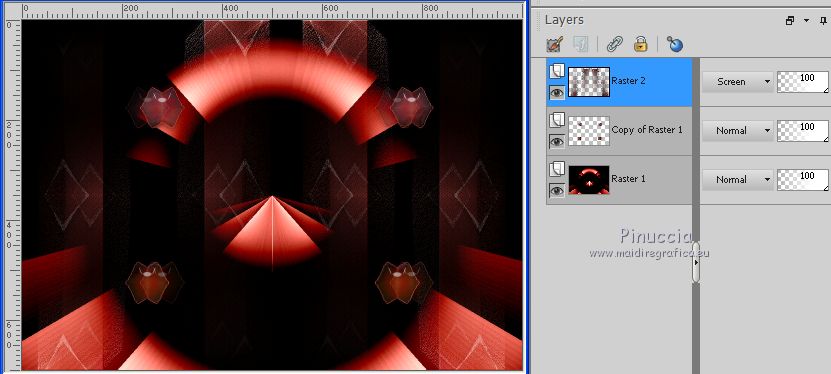

9. Open the tube decolc (the Blend Mode of this layer is Screen) and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.
Layers>Duplicate (to darken the effect)
Layers>Merge>Merge Down.
Keep the Blend Mode of this layer to Screen



10. Layers>New Raster Layer.
Flood Fill the layer with your Gradient.

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Narah_Mask_0597.



Layers>Merge>Merge Group.

Image>Resize, to 80%, resize all layers not checked.

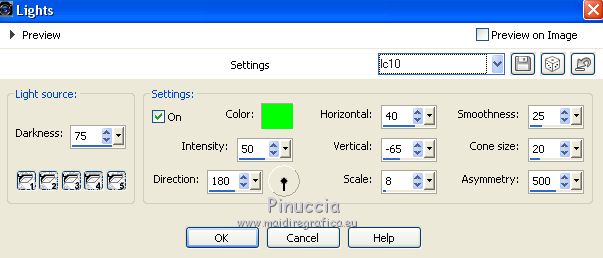

11. Effects>Illumination Effects>Lights
select the preset lc10 and ok



12. Layers>New Raster Layer

If you don't see the toolbar scripts: View>Toolbars>Script
and select the script circulo1

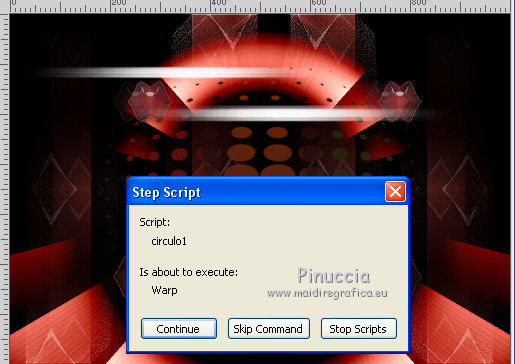

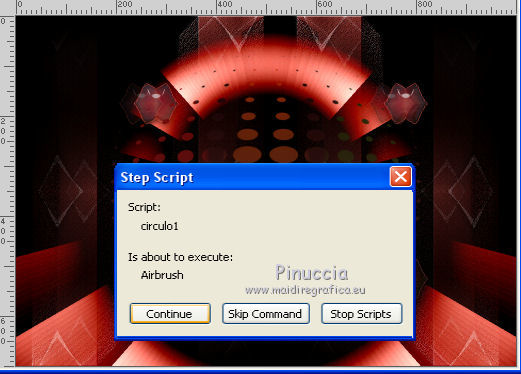

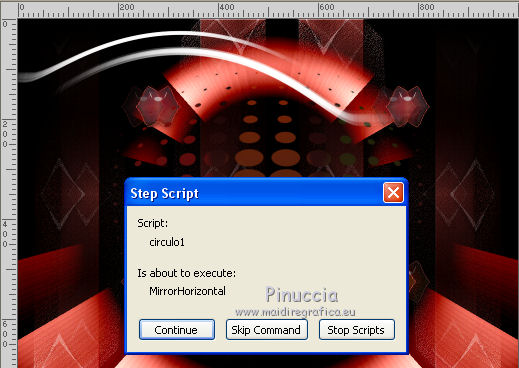

If you want to manage the steps of the script, click on Toggle Execution Mode;
and so the script will stop at each step



Click on the black arrow (blue in the new versions) to execute the script

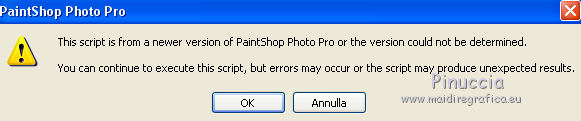

If you work with an earlier version, you may have this message



Click ok to go on
If you have problems with the script, go to the step 12b.

*****

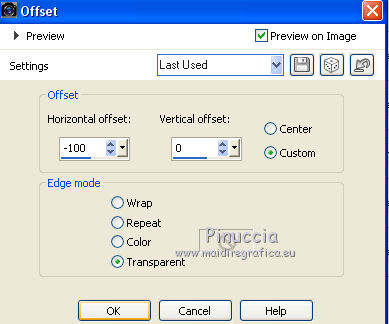

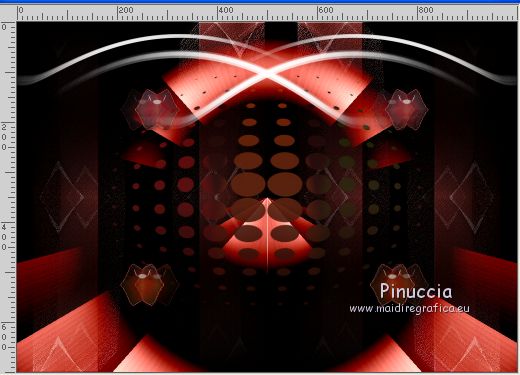

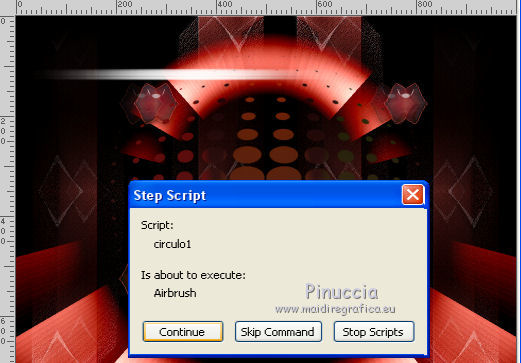

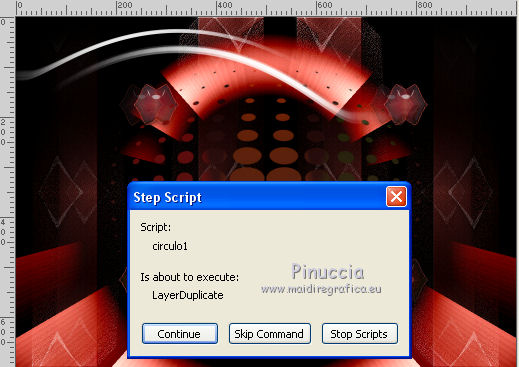

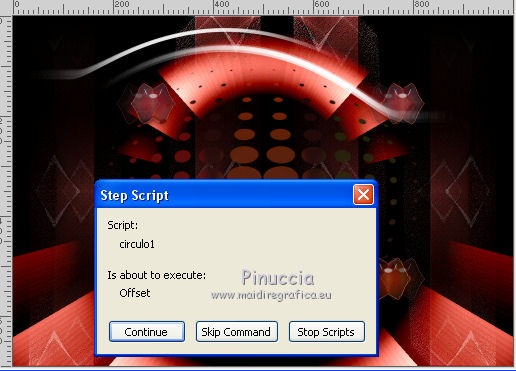

Here below the steps of the script



















It is over.



*****

12b. If you have problems with the script,
open the image script efeito and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

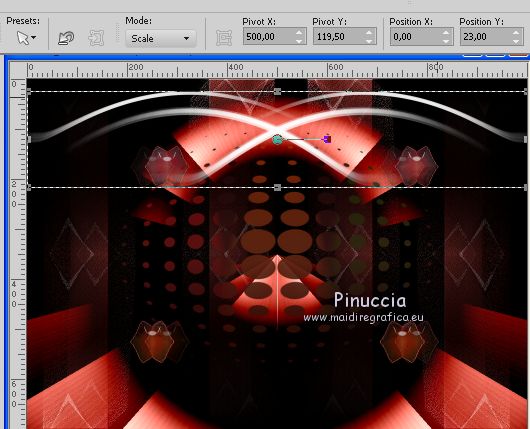

Activate your Pick Tool
and set Position X: 0,00 and Position Y: 23,00.

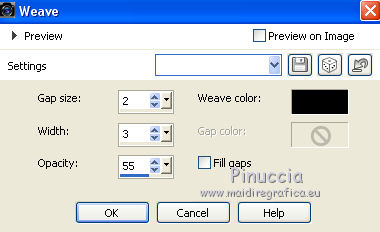

13. Effects>Texture Effects>Weave

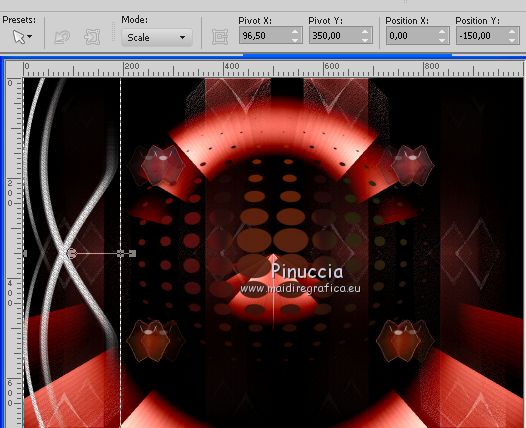

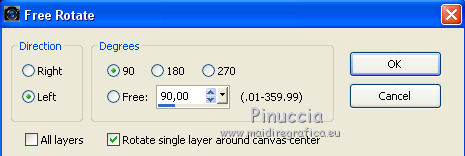

14. Image>Free Rotate



Objects>Align>Left
or, with your Pick Tool
set Position X to 0,00



Layers>Duplicate.
Image>Mirror.
Layers>Merge>Merge Down.

15. Activate your Change to Target Tool , size 100



hold the left mouse button to use your foreground gradient and hove the mouse over the image to colorize it

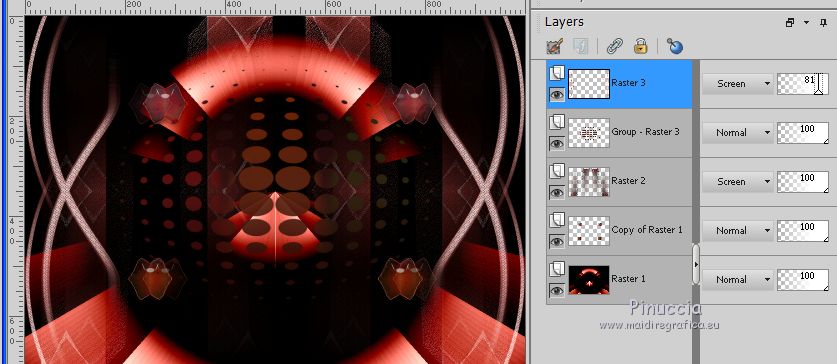

Change the Blend Mode of this layer to Screen, opacity between 80/85%.



(adapt at your choices Blend Modes and opacities)

16. Image>Ajouter des bordures, 1 pixel, symétrique, couleur d'avant plan #450803.

Effets>Modules Externes>AAA Frames - Texture Frame



17. Ouvrir le tube 5077-luzcristina - Édition>Copier.
Revenir sur votre travail et Édition>Coller comme nouveau calque.
Effets>Modules Externes>Alien Skin Eye Candy 5 Impact - Perspective Shadow.
Sélectionner le preset Drop Shadow Blurry et ok.



Positionner le tube à votre goût.

18. Sign your work on a new layer.

little note about the watermark:
I don't ask to put watermark on the versions made by my translations.
But if you decide to use the watermark supplied by the author, I would appreciate that my work as translator was also respected.
For that, I added my watermark to the material.

19. Save as jpg.

Version with tube by Luz Cristina



Your versions here




If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

7 March 2020
