This tutorial was created with PSPX9 and translated with PSPX2 and PSPX3 and PSPX7, but it can also be made using other versions of PSP.
Since version PSP X4, Image>Mirror was replaced with Image>Flip Horizontal,
and Image>Flip with Image>Flip Vertical, there are some variables.
In versions X5 and X6, the functions have been improved by making available the Objects menu.
In the latest version X7 command Image>Mirror and Image>Flip returned, but with new differences.
See my schedule here


French translation here
your versions ici




For this tutorial, you will need:
Material here
Thanks: for the tubes Beatriz (2093-woman-LBTUBES) and Ket (ketlandscape005)
and for the mask Narah (NarahsMasks_1639).
The rest of the material is by Lica Cida.
(you find here the links to the material authors' sites)



Plugins
consult, if necessary, my filter section here
Filters Unlimited 2.0 here
Filter Factory Gallery A - Wood Grain here
Virtual Painter 4 here
Bordermania - Round Button #2 here
DSB Flux - Blast here
FM Tile Tools - Blend Emboss here
Andrew's Filter 58 - Galactic Crunch here
Alien Skin Eye Candy 5 Impact - Perspective Shadow here
Mura's Seamless - Emboss at Alpha here
Filters Factory Gallery, VM Stylize and Mura's Seamless can be used alone or imported into Filters Unlimited.
(How do, you see here)
If a plugin supplied appears with this icon it must necessarily be imported into Unlimited



You can change Blend Modes according to your colors.

In the newest versions of PSP, you don't find the foreground/background gradient (Corel_06_029).
You can use the gradients of the older versions.
The Gradient of CorelX here

Copy the presets Preset_lights_palcomp and Preset_InnerBevel_Deep Beveled in the Presets Folder.

Copy the selection in the Selections Folder.

Open the masque in PSP and minimize it with the rest of the material.

1. Open a new transparent image 1024 x 800 pixels.

Set your foreground color to #dfdfdf,
and your background color to #331e13.

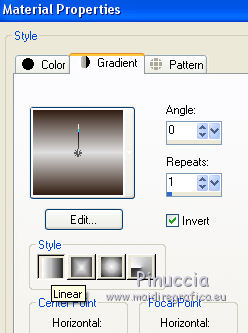

Set your foreground color to a Foreground/Background Gradient, style Linear.



Flood Fill the transparent image with your Gradient.

2. Selections>Select All.

Open the tube SuizaBella_Ref_AG-001091 and go to Edit>Copy.
Go back to your work and go to Edit>Paste into Selection.
Selections>Select None.

Adjust>Sharpness>Sharpen More.

Effects>Image Effects>Seamless Tiling.

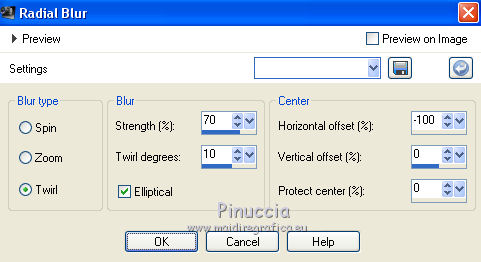

3. Adjust>Blur>Radial Blur.



Layers>Duplicate.
Image>Mirror.
Change the Blend Mode of this layer to Overlay.

Layers>Merge>Merge Down.

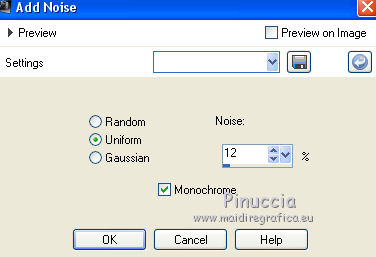

4. Adjust>Add/Remove Noise>Add Noise.



Effects>Plugins>FM Tile Tools - Blend Emboss, default settings.

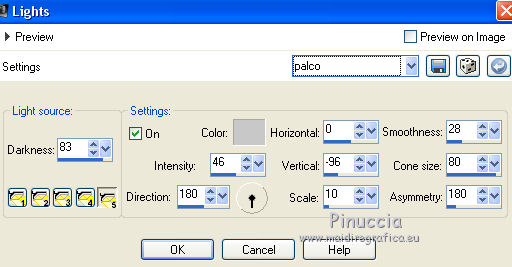

5. Effects>Illumination Effects>Lights - select the preset palcom.



6. Selections>Load/Save Selection>Load Selection from Disk.
Look for and load the selection sel_relent



Selections>Promote Selection to Layer.

7. Effects>3D Effects>Inner Bevel - preset Deep Beveled and ok.



Selections>Select None.

8. Effects>Plugins>Filters Unlimited 2.0 - VM Stylize - Zoom Blur, default settings.



9. Effects>Reflection Effects>Rotating Mirror.



Change the Blend Mode of this layer to Multiply.

Activate the layer Raster 1.

Edit>Paste as new layer (the tube Suizabella_Ref_AG-001091 is still in memory).

Image>Resize, to 80%, resize all layers not checked.
Adjust>Sharpness>Sharpen More.

10. Stay on the layer Raster 2.

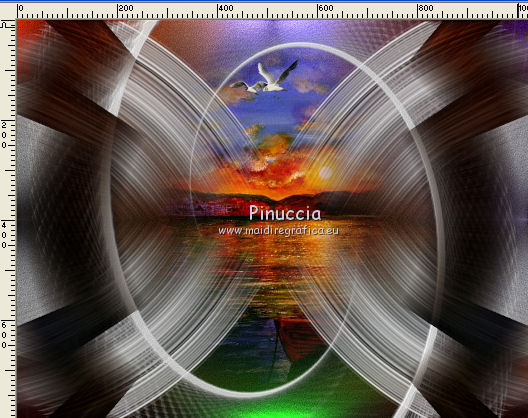

Open the tube decorelentless and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Reduce the opacity of this layer to 89%>

11. Layers>New Raster Layer.
Set your foreground color to Color.
Flood Fill the layer with your foreground color.

Layers>New Mask layer>From image
Open the menu under the source window and you'll see all the files open.
Select the mask Narah_Masks_1623.



Effects>Edge Bords>Enhance.
Layers>Merge>Merge Group.

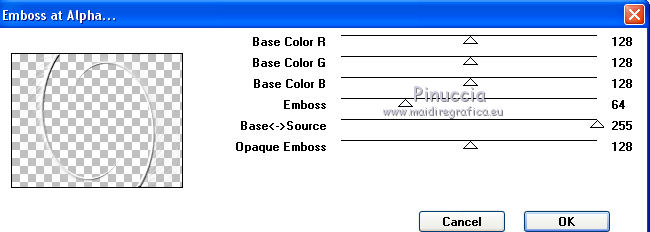

Effects>Plugins>Mura's Seamless - Emboss at Alpha, default settings.



Effects>Plugins>Alien Skin Eye Candy 5 Impact - Perspective Shadow.
Select the preset Drop Shadow, Blurry and ok.



Change the Blend Mode of this layer to Lighten and reduce the opacity to 91%.

The tag and the layers - adapt Blend Modes and opacities according to your colors.



12. Open the tube nicole-deco4-2020 and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Place correctly the tube



13. Image>Add borders, 1 pixel, symmetric, foreground color.
Image>Add borders, 1 pixel, symmetric, background color.

Selections>Select All.
Image>Add borders, 50 pixels, symmetric, color #ffffff.

Selections>Invert.

Set again your foreground color to the initial Gradient.



Flood Fill the selection with your gradient.

Adjust>Add/Remove Noise>Add Noise.



Effects>Plugins>FM Tile Tools - Blend Emboss, default settings.

Selections>Invert.

Effects>3D Effects>Drop Shadow, color #000000.



Selections>Select None.

14. Open the tube 3460-woman-LBTUBES and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Image>Resize, to 130%, resize all layers not checked.
Move the tube to the right side.

Effects>3D Effects>Drop Shadow, at your choice.

15. Open the tube AS Tube deco1 and go to Edit>Copy.
Go back to your work and go to Edit>Paste as new layer.

Move the tube at the bottom left, or at your choice.

Image>Add borders, 1 pixel, symmetric, foreground color.
Image>Add borders, 1 pixel, symmetric, background color.

Sign your work on a new layer.
16. Sign your work on a new layer.
Add, if you want, the auteur and translator's watermarks.

Image>Resize, 1024 pixels width, resize all layers checked.

Layers>Merge>Merge All and save as jpg.

Version with tubes by Luz Cristina and Nena Silva



Your versions here




If you have problems or doubts, or you find a not worked link, or only for tell me that you enjoyed this tutorial, write to me.

2 June 2021
